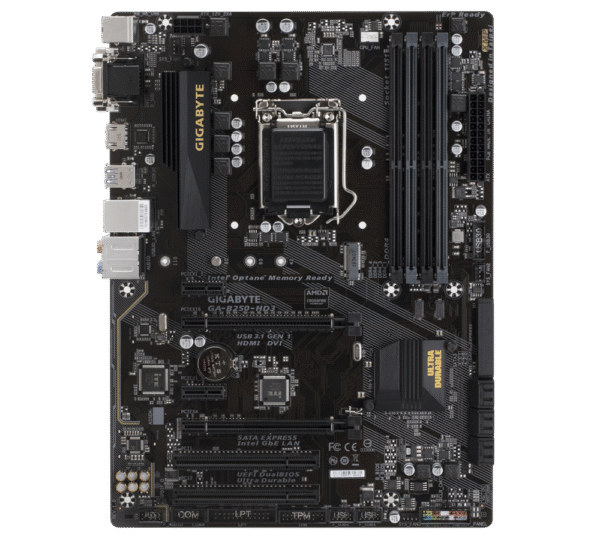

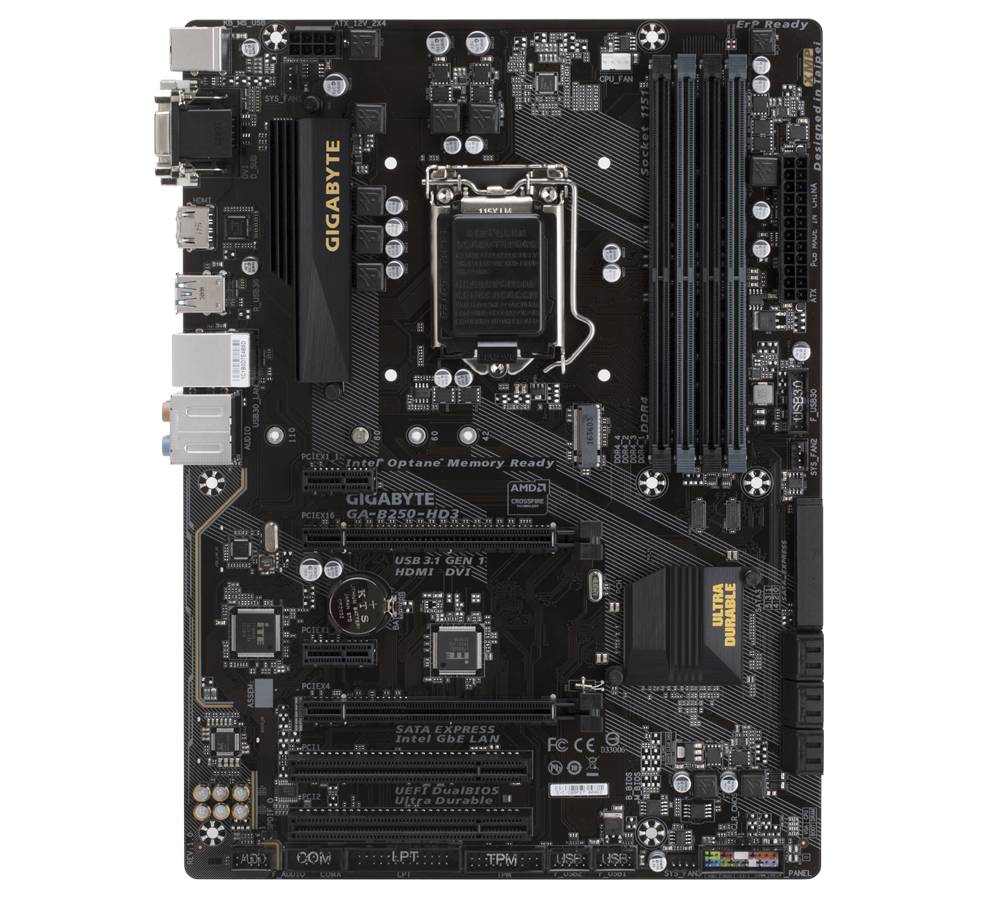

| CPU Support |
6th & 7th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron® (LGA 1151) |
| Chipset |
Intel® B250 Express |
| Form Factor |
ATX (30.5 cm x 20.0 cm) |
| Memory |
– 4 × DDR4 DIMM slots, up to 64 GB- DDR4 2400/2133 MHz- Dual-channel- ECC/Non-ECC Un-buffered DIMMs supported (non-ECC mode) |
| Graphics (iGPU) |
Intel® HD Graphics- 1 × D-Sub (1920×1200@60 Hz)- 1 × DVI-D (1920×1200@60 Hz)- Max shared memory: 1 GB |
| Audio |
Realtek® ALC887 codec2/4/5.1/7.1-channel HD AudioSupports S/PDIF Out |
| LAN |
Realtek® Gigabit LAN (10/100/1000 Mbps) |
| Expansion Slots |
– 1 × PCIe x16 (x16 mode)- 1 × PCIe x16 (x4 mode)- 3 × PCIe x1(All PCIe 3.0) |
| Multi-GPU Support |
AMD Quad-GPU CrossFire™ & 2-Way CrossFire™ |
| Storage |
– 6 × SATA 6Gb/s- 1 × M.2 (SATA & PCIe x4/x2, 2242/2260/2280)- Supports RAID via chipset |
| USB Ports |
– 6 × USB 3.1 Gen 1 (4 rear, 2 internal)- 6 × USB 2.0/1.1 (2 rear, 4 internal) |
| Rear I/O Ports |
– 1 × PS/2 Keyboard/Mouse- 1 × D-Sub- 1 × DVI-D- 4 × USB 3.1 Gen 1- 2 × USB 2.0- 1 × RJ-45- 3 × Audio Jacks |
| Internal Connectors |
– 1 × 24-pin ATX- 1 × 8-pin ATX 12V- 1 × CPU fan- 3 × System fans- 1 × S/PDIF Out- 1 × Serial header- USB headers, etc. |
| Monitoring Features |
Voltage, Temperature, Fan Speed detection, Overheat/Fan Fail warning, Fan Speed control |
| BIOS |
– AMI UEFI BIOS- 1 × 64Mbit flash- Q-Flash, Xpress Install |
| Unique Features |
– APP Center: @BIOS, EasyTune, Cloud Station, USB Blocker, Ambient LED, Smart TimeLock, and more- Game Boost, 3D OSD, Smart Backup |
| Bundled Software |
Norton Internet Security (OEM), cFosSpeed |
| OS Support |
– Windows 10 64-bit (7th Gen CPUs)- Windows 10/8.1/7 64-bit & 32-bit (6th Gen CPUs)Win7 USB Tool required from Gigabyte’s site |
