| Specifications | |
|---|---|

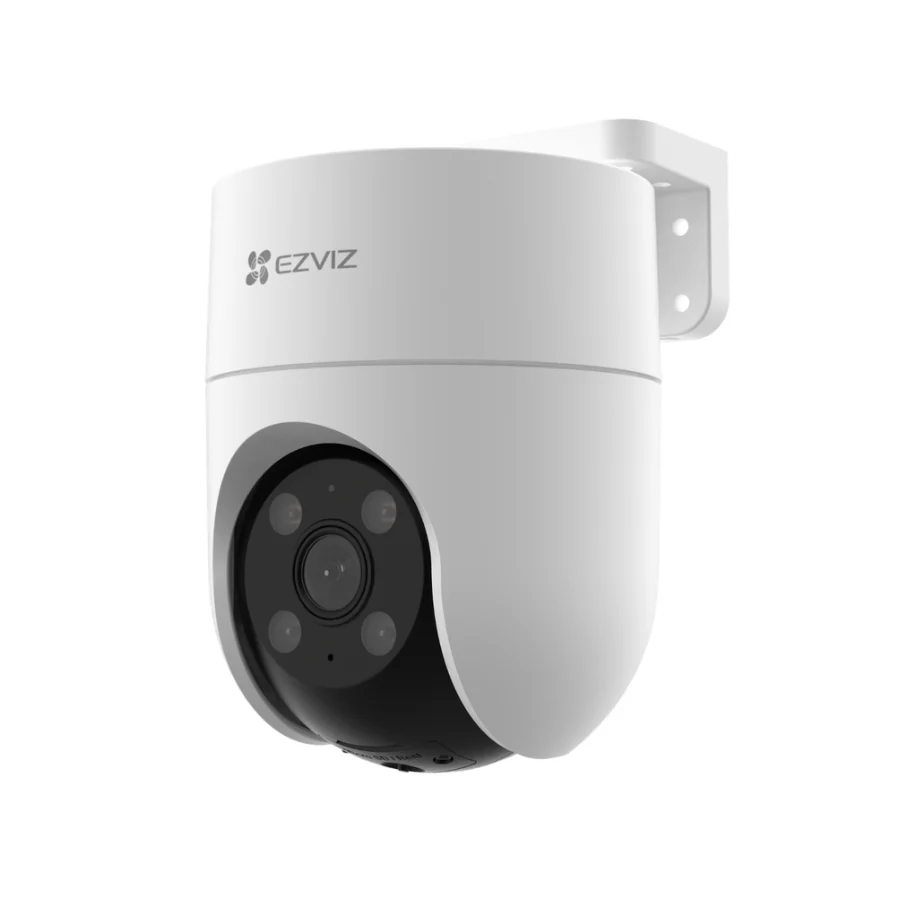

| Model | CS-H8c Pro (2K) |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, viewing angle: 49° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2304*1296 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-Powered Human Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1A |
| Power Consumption | MAX. 12W |
| Dimensions | 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch) |
| Packaging Dimensions | 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch) |
| Weight | Net Weight: 516g; With Package: 820.5g For EU Standard Version |
| In the box | |
| In the box | – H8c Pro 2K Camera |
| – Drill Template | |
| – Screw Kit | |
| – Waterproof Kit | |
| – Power Adapter | |
| – Regulatory Information | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH |
