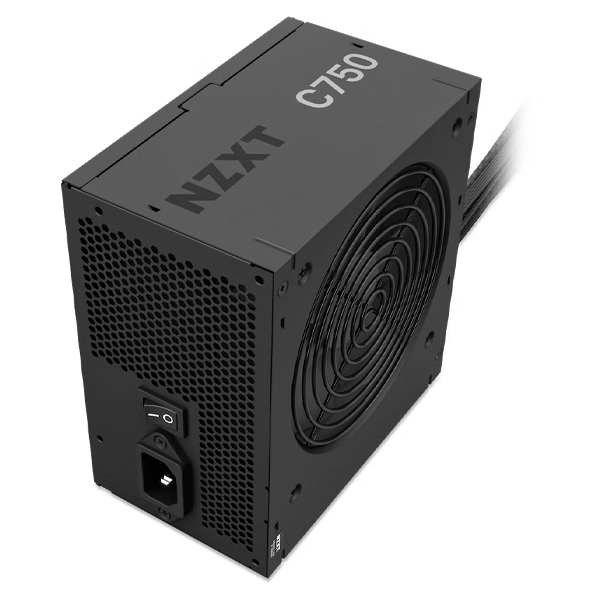

NZXT C750 750W 80+ Bronze Non-Modular

Tech Specs

OUTPUT CONNECTOR(S)

• • 24-pin ATX Power:1

• • 4+4-pin CPU power:2

• • 6+2-pin PCIe power:2

• • SATA Power:4
•    Peripherals:4

CABLE SPECS

• • 24-pin ATX power:600mm, Nylon sleeving

• • 4+4-pin CPU power:700mm, Nylon sleeving

• • 6+2-pin PCIe power:650 + 150mm, Nylon sleeving

• • SATA power:500 + 150 mm



• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 – 240Vac:10A-5A 50Hz-60Hz

DC OUTPUT RATING

• • +3.3V:20A (120W)

• • +5V:20A (120W)

• • +12V:62.5A (750W)

• • -12V:0.3A (3.6W)

• • 5Vsb:2.5A (12.5W)
• Total:750W

OPERATION

• • PF Correction:[email protected]

• • MTBF:100,000 hours
• Operation Temperature:0 to 40°C

ENERGY EFFICIENCY

• • Rating:80 Plus Bronze

• • 10% loading:86.2% @115Vac

• • 20% loading:88.97% @115Vac

• • 50% loading:88.7% @115Vac
• 100% loading:83.2% @115Vac

FAN SPECS

• • Dimensions:120 x 120 x 25 (mm)

• • Speed:2400 ±10% RPM

• • Airflow:64.4 CFM (Tpy.)

• • Noise:39.92 dBA max
• Bearing:FDB (Fluid Dynamic Bearing)

GENERAL

• • Dimensions (W x L x H):150 x 140 x 86mm

• • Material(s):Steel, PCB and Plastic

• • Compliance Standard:ATX12V v2.53 / EPS12V v2.92

• • Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM

• • Hazardous Materials:Taiwan and China RoHS Table, CP65, EU REACH



• Protections:OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection)
