| Network Type—- |
| Frequency Bands |
| LTE: B1/B3/B5/B7/B8/B28/B38/B40/B41 |
| UMTS: Band 1, 5, 8 |
| Bandwidth— |
| LTE Band: 1.4/3/5/10/15/20 MHz, comply with 3GPP |
| Modulation— |
| Downlink: QPSK/16-QAM/64-QAM, comply with 3GPP |
| Uplink: QPSK/16-QAM, comply with 3GPP |
| Antenna— |

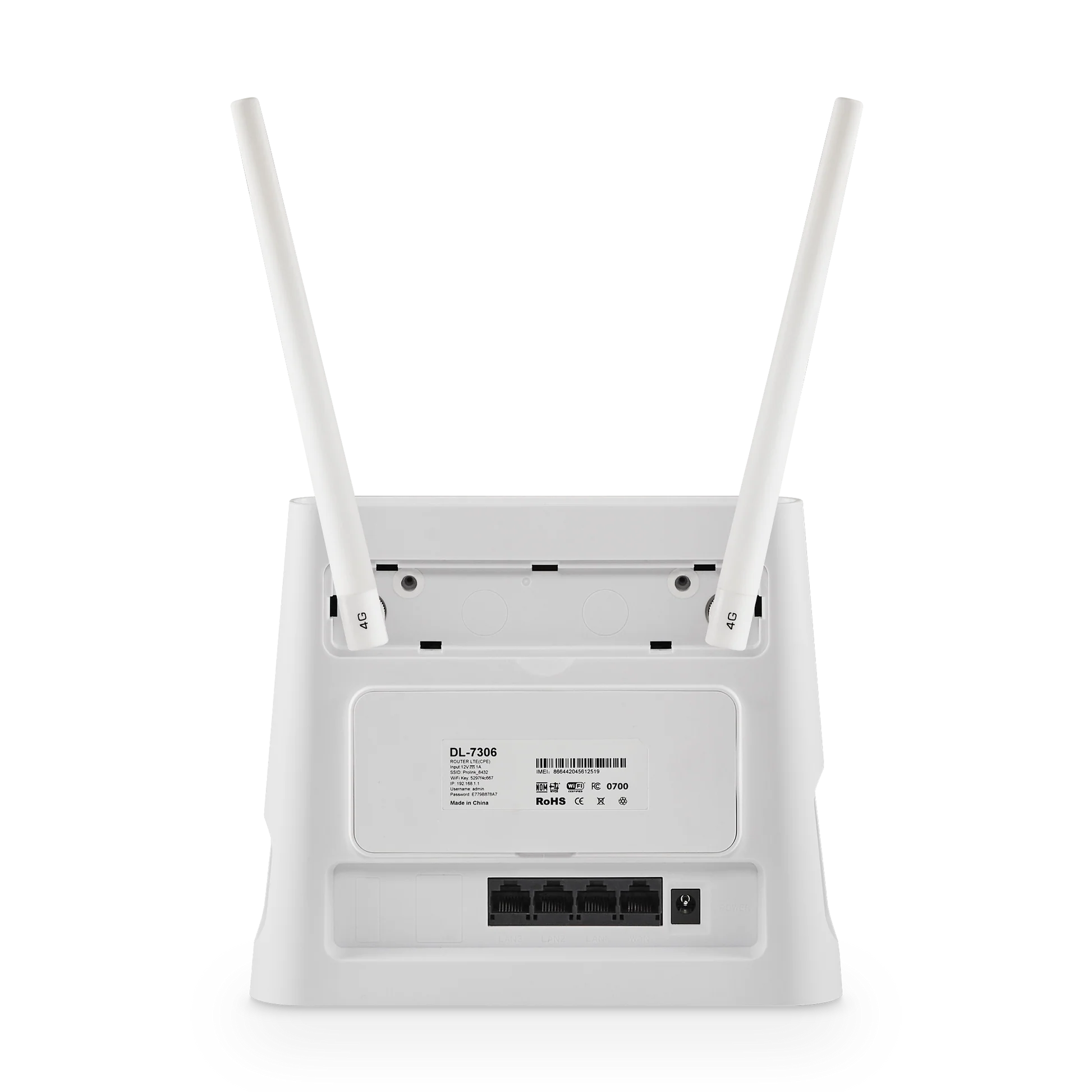

| 2x 5dBi LTE detachable external antenna |
| WLAN— |
| Wi-Fi |
| Frequency: 2.4GHz |
| Protocol: 802.11b/g/n, 20/40MHz |
| Channel: 1 ~ 11 |
| Antenna: Internal, 2 x 2 |
| Data Rate— |
| 4G: |
| 3GPP Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps |
| 3G: |
| 3GPP Downlink/Uplink up to 42Mbps/5.76Mbps |
| 3GPP2 Downlink/Uplink up to 3.1Mbps/1.8Mbps |
| Feature— |
| Interface— |

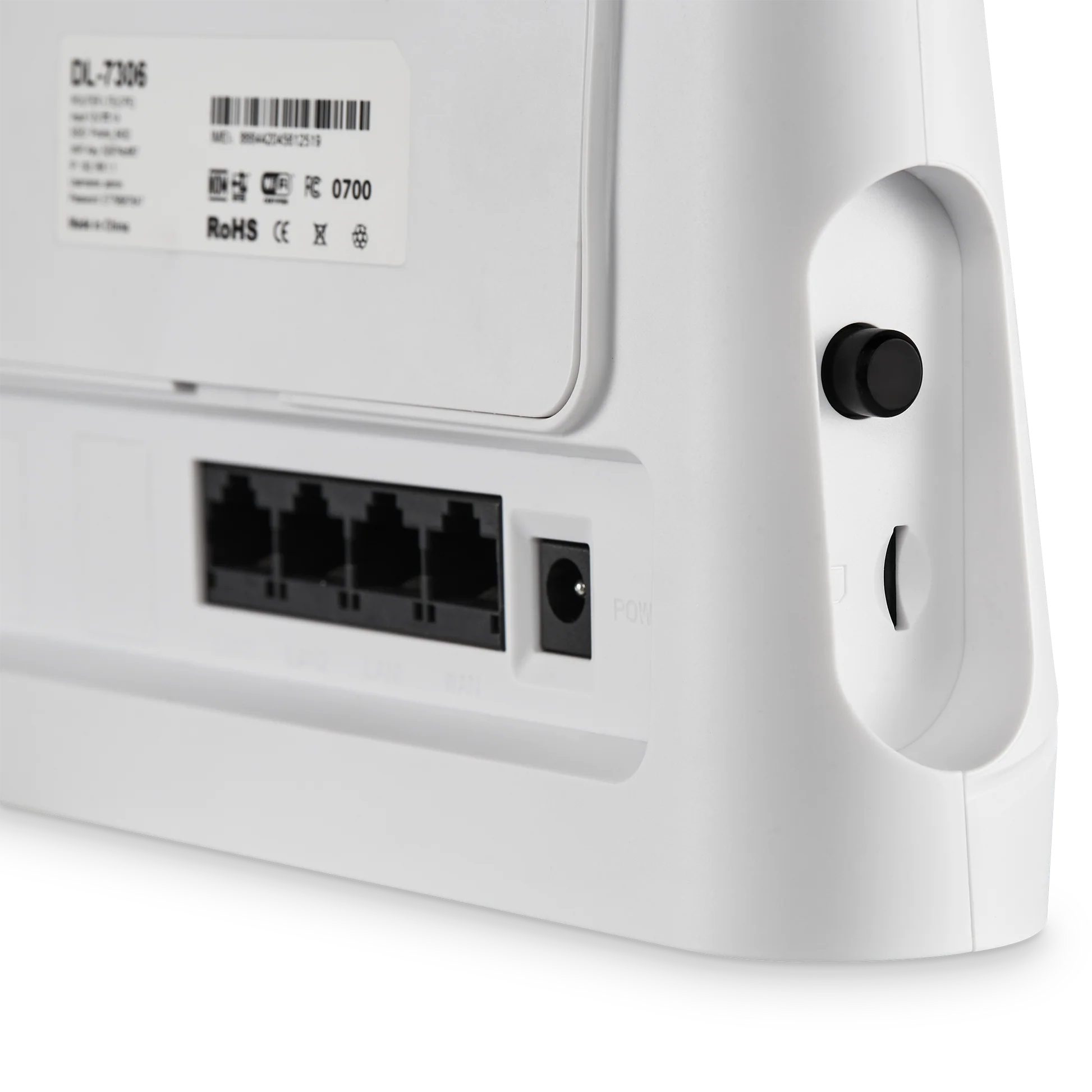

| LAN/WAN: 1x WAN + 3x LAN |
| USIM: Nano SIM (4FF) |
| Power Jack: DC Input (12V/1A) |

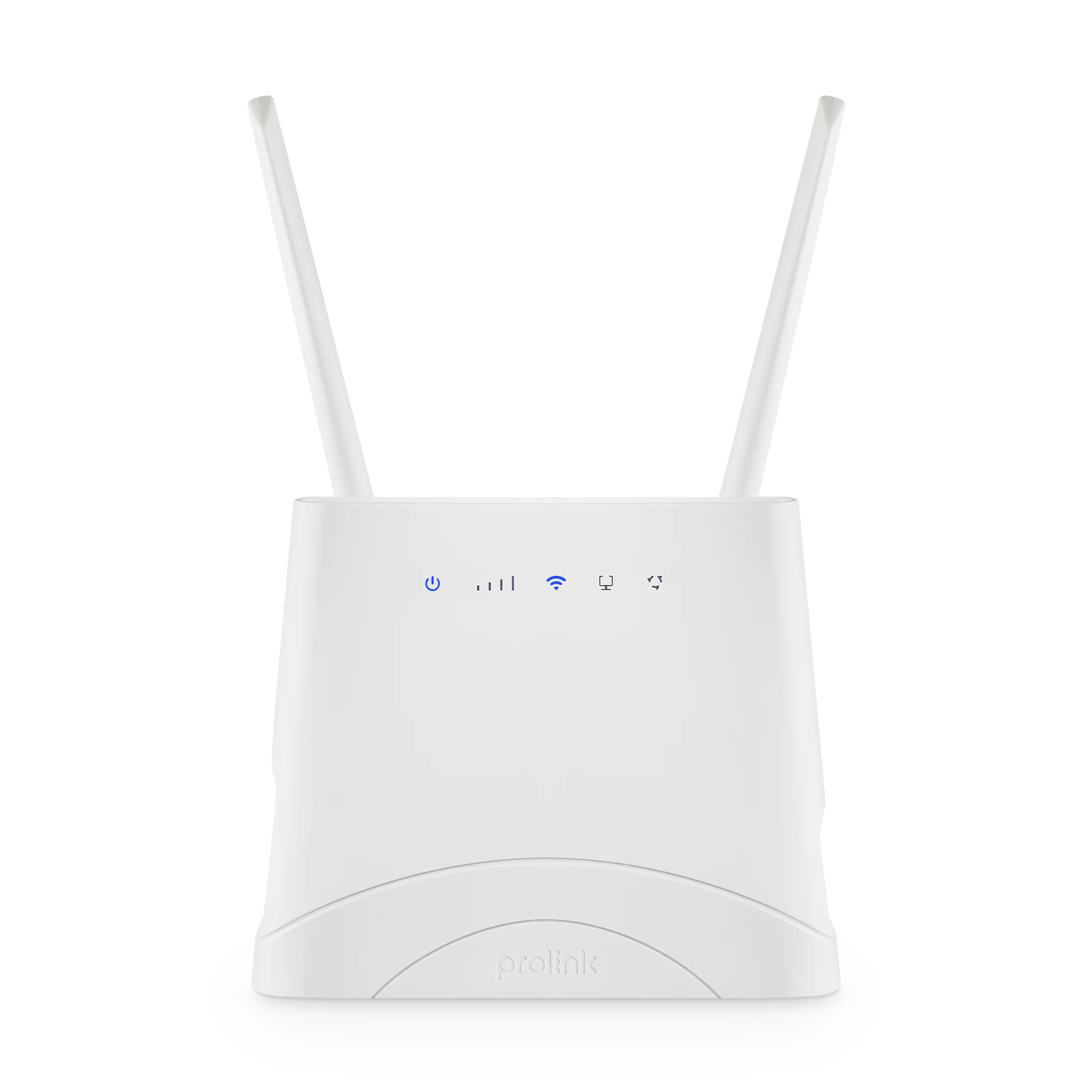

| LED Indicator— |
| Power Status: Blue/Purple/Red LED |
| Internet Connection Status: Blue LED |
| Wi-Fi Status: Blue LED |
| LAN/WAN Indicator: Blue LED |
| Signal Strength: 4 Blue LEDs |
| Buttons— |
| Power: On/off |

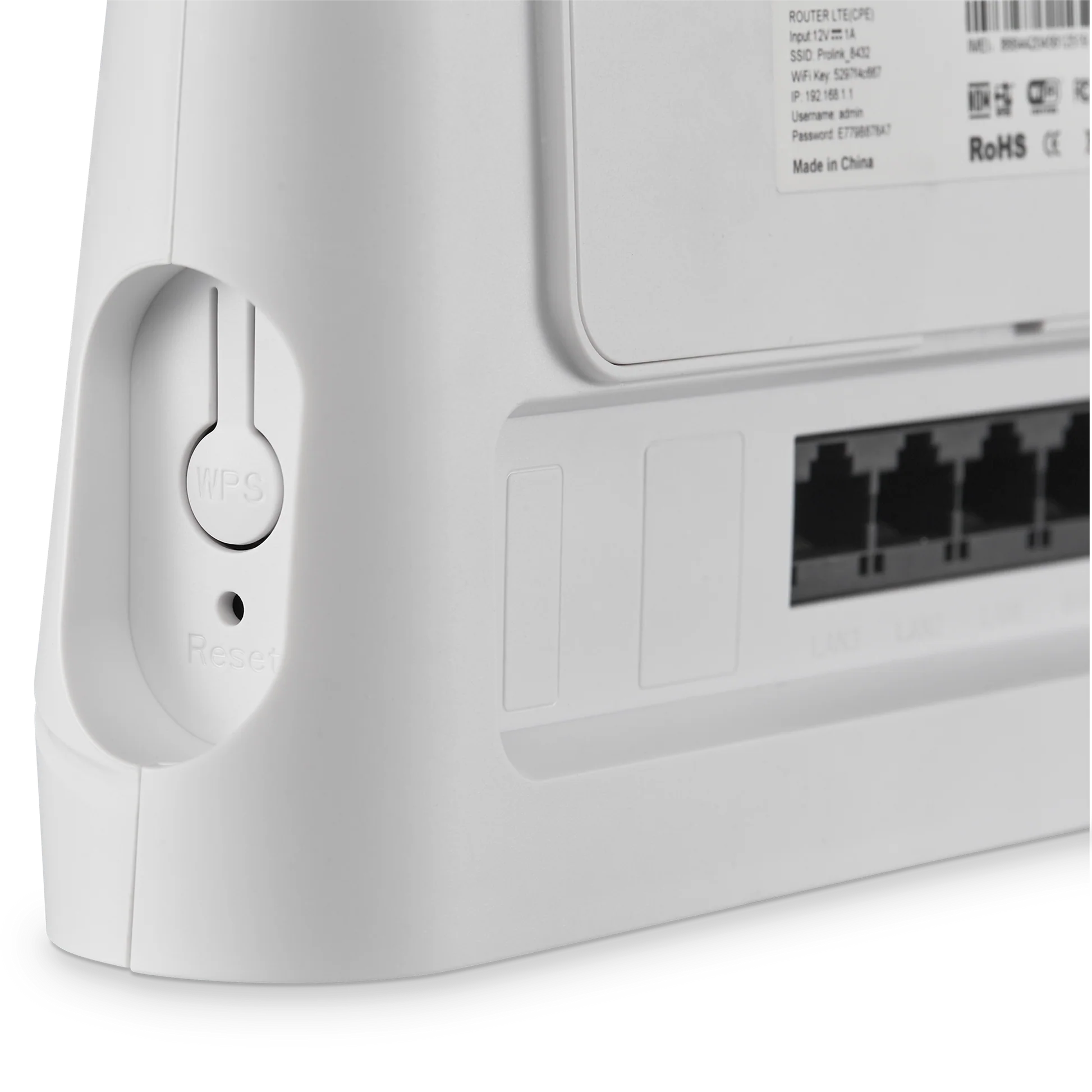

| WPS: Enable /Disable WPS and Wi-Fi |
| Reset: Restore Factory Settings |
| WebUI (System) |
| Connection Status— |
| Statistics— |
| Device Management— |
| WebUI (Mobile Service) |
| SMS Manager– |
| Automatic APN matching according to USIM |
| Auto Data Connection– |
| USSD Service– |
| PIN/PUK Management– |
| Network Mode Selection (3G/LTE/Auto) |
| WebUI (Router)— |
| 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| IPv4/v6— |
| Port Forwarding, Port Mapping, UPnP, DMZ |
| IP/Port/Mac Filtering |
| DDNS (dyndns.org/ no-ip.com)— |
| PPPoE, DHCP, Static |
| Power Back-up— |
| Built-in 4000mAh Li-on Battery |
| Up to 8 hours battery life (Depending on connected number of devices and LTE/Wi-Fi signal) |
